Description

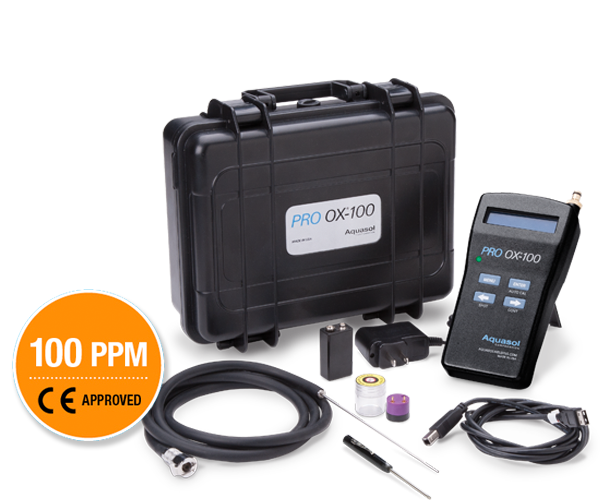

Kit Contents
• PRO OX®
-100 Monitor and Sensor
• Polycarbonate Carrying Case
• Neoprene Extension Tubing (5 ft. or 1.5 m)
with Quick Connect Fittings
• Stainless Steel Probe
» Slender 0.08″ (2 mm) Diameter
®
MADE IN THE USA
• Rechargeable Battery & Charger
• USB Cable
• Support Stand
• Phillips Head Screwdriver
• Quick Instruction Card

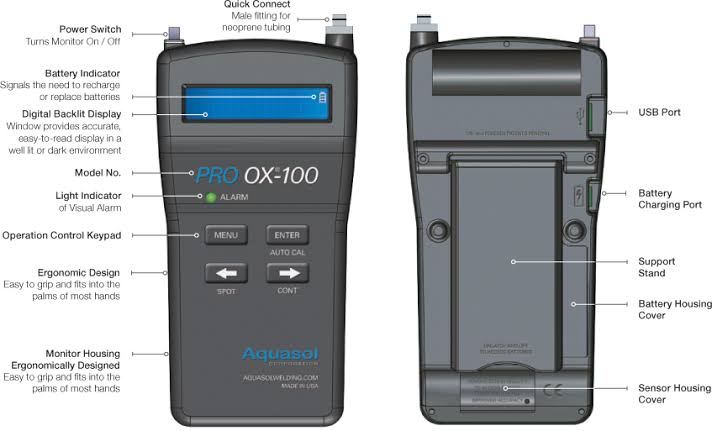

Monitor Features
• 0.01% Oxygen Resolution
• Automatic Self Calibration
• Internal Pump
• Data Logging Capability:
Accumulates Up to 50 Data Points
• Data Output to Computer for
Recording History
• Audiovisual Alarm
• Rechargeable 9V Battery
• One Year Warranty on Unit and Sensor
• Illuminated Display
• Designed for Universal Voltage
• Programmable in Multiple Languages
Audiovisual Alarm
Oxygen contamination is one
of the most common reasons
for substandard welds.
Eliminate guesswork by
setting the audiovisual
alarm to desired O2
PPM
value. The unit will produce
an intermittent beep
sound simultaneously as
a green light flashes. The
operator is alerted and
can continue evacuating oxygen, reset the alarm or
commence welding.
Rechargable 9V Battery & Charger
Designed For Universal Voltage
The PRO OX®
-100 is compatible with different voltage
and frequency specifications from around the world.
It can operate on 100VAC/60Hz, 120VAC/60Hz and
220VAC/50Hz configurations.
• Can be Used Over & Over
• Environmentally Friendly
• Save on Purchases
Self-Calibrating and Certified
• The PRO OX®
-100 Oxygen Monitor is factory
calibrated and certified, accompanied by a dated
certificate of authentication
CE Designation
• The PRO OX®
-100 is in compliance with
EC Directives
Languages
Besides English, the PRO OX®
-100 is programmable in
three popular languages:
• German
• Portuguese
• Spanish
Data Logging Capabilities
Increase Accuracy With Software Reporting
• With the PRO OX®
-100 you will be able to create
permanent records of real time data (at 15 second
intervals) of oxygen levels for critical welding
operations
Easy-to-Use Conversion Software
• The PRO OX®
-100 software enables the user to
capture and export 50 data points in just clicks to
Microsoft® Excel and plain text format
Convenient and Quick Data Offload
• The PRO OX®
-100 offloads data to a PC via a
convenient USB interface at a high-speed, ensuring
data integrity
Features Two Sampling Modes
SPOT:
• Use this mode if the purging process requires more
than 20 minutes to help save battery and time
• Use this mode for simultaneous weld applications
CONTINUOUS:
• Use this mode when permanent records are
required (in conjunction with data logging)
• Use this mode when PPM is near required level
aquasolwelding.com
P
Handheld Oxygen Monitor PRO OX®
-100 Sp
Measurement
Range: 0.00-21.0% Oxygen concentration
by volume
Calibration: 20.9% (Oxygen concentration in air)
Calibration Gas: Ambient Air
Display Resolution: 0.00-24.99% (2 decimal places LCD)
Accuracy: @ 99.995% Ar +/- 0.01%
Response Time: T90<15 seconds
Warm Up Time: Negligible
Humidity: 0-95% non-condensing
Operating
Temperature: 32˚-122˚F (0˚-50˚C)
SPECIFICATIONS
Item No. Description
Dimensions Weight
English (in) Metric (mm) English Metric
P-OX KIT PRO OX-100 Oxygen Monitor &
Accessories Kit 11 x 9 x 4 279 x 227 x 102 4.00 lb 182 g
P-OX KIT Euro PRO OX-100 Oxygen Monitor &
Accessories Kit with European Charger 11 x 9 x 4 279 x 227 x 102 4.00 lb 182 g
P-OX Sensor PRO OX-100 Oxygen Sensor 1 x 1 21 x 20 0.03 lb 16 g
P-OX Batt PRO OX-100 9V NiMH Battery 2 x 1 x 1 48 x 26 x 17 0.12 lb 54 g
P-OX Charger/US PRO OX-100 12V NiMH Battery Charger
with US Type Plug 3 x 2 x 1 8 x 60 x 25 0.10 lb 59 g
P-OX Charger/EU PRO OX-100 12V NiMH Battery Charger
with European Type Plug 3 x 2 x 1 8 x 60 x 25 0.10 lb 59 g
P-OX USB PRO OX-100 USB Cable (72″ or 1.8 m) 4 x 4 x 1 102 x 102 x 25 0.11 lb 50 g
PRO OX.B1.0414.R3
For additional product information,
quotations and ordering, please contact:
Aquasol Corporation
80 Thompson Street
N. Tonawanda, NY 14120 USA
Toll Free: 1.800.564.WELD (9353)
Phone: 716.564.8888
Fax: 716.564.8889
Email: info@aquasolcorporation.com
aquasolwelding.com
Distributed By:
MADE IN THE USA
PRO OX®
-100 Kit Types and Sizes
Storage
Temperature: 37.4˚-68˚F (3˚-20˚C)
Sample Flow: 1.0 LPM maximum
Sample Pressure: 10.0 PSI (pounds-force per square
inch) maximum
Power: One 9V NiMH Cell Battery
Battery Life: Up to 2 hours when operating in
continuous sampling mode.
Sensor Type: Electrochemical Oxygen Sensor
Sensor Life: 12 months
Recommended
Calibration Period: Weekly, dependent upon use
PC Connection: USB Type B
