Gel imaging refers to the detection and analysis of different staining of gel electrophoresis such as DNA/RNA/protein (such as EB, Coomassie brilliant blue, silver stain, sybr green) and non-chemiluminescence imaging detection and analysis of microplates and plates. The portable gel imaging…
Description
Technical Parameters
Ningbo Scientz Biotechnology Co.,Ltd. is one of the leading portable gel imaging analysis system gelsmart suppliers in China. Welcome to buy our quality and cheap products for sale in bulk. We also welcome wholesale orders and customized orders. Now, please be free to check the price list with our factory.
Gel imaging refers to the detection and analysis of different staining of gel electrophoresis such as DNA/RNA/protein (such as EB, Coomassie brilliant blue, silver stain, sybr green) and non-chemiluminescence imaging detection and analysis of microplates and plates.

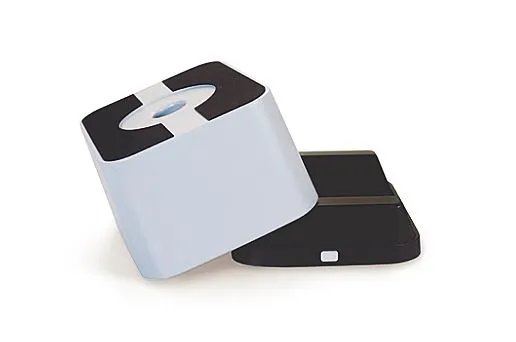

The portable gel imaging analysis system GelSMART can be used in routine bioengineering research such as molecular weight calculation, density scanning, density quantification, and PCR quantification.
Laboratory Gel Imaging System Feature
| • Compact foot print with a field of 10×10cm |
| • Simple operation of experiments and quick acquisition of results |
| • Epi-blue light diminishes UV exposure to lab personnel and DNA damage in the sample |
| • Adjustable epi-blue light source emits light with high intensity and minimum heat for better light control |
| • Filter holders can accommodate most popular smartphones/tablets |
| • Optional light-weight app |
Laboratory And Medical Gel imaging System Parameters
| Specifications | GelSMART |
| Light Source | 470nm epi blue light |
| White Light Plate | Yes |
| Filter Protective Shield | Amber, using when observing or cutting gels |
| Viewing Area | 10 x 10cm |
| Compatible Bye | DNA： ECO Safe, SYBR Safe, GelGreen Protein：Lightning Red, Silver/ Coomassie blue,SYPRO Ruby |
| Light Source (L x W x H) | 216 x 168 x 54 mm |
| Light Source Cover (L x W x H) | 211 x 161 x 108 mm |
| Total Size (L x W x H) | 216 x 168 x 128 mm |
| Weight | 1.2 Kg |
| Power Supply | 12V / 1.5A AC power adapter |
| Optional app | for Android 4.4 and above or iOS9.0 and above |
